Description

special features

• Large front panel display and user friendly control panel
• 10° slanted view screen provides highly visible and easily accessible area
• Work area is surrounded by negative pressure , double-wall plenums for superior protection
• Sturdy constriction of cabinet protects from air leakage from the working zone
• Display of Life of UV lamp, HEPA filter and temperature
• Caster wheels for ease of mobility
• Levelling jack for vibration free operation

Designed for Indian lab environments, our BSCs feature low-noise EC blowers, bright shadow-free LED illumination, easy-service prefilters, and a microprocessor controller that continuously monitors face velocity and filter health. Models are available in Class II Type A2, Class II Type B2, and Class III (glove box) configurations to match your containment and exhaust strategy.

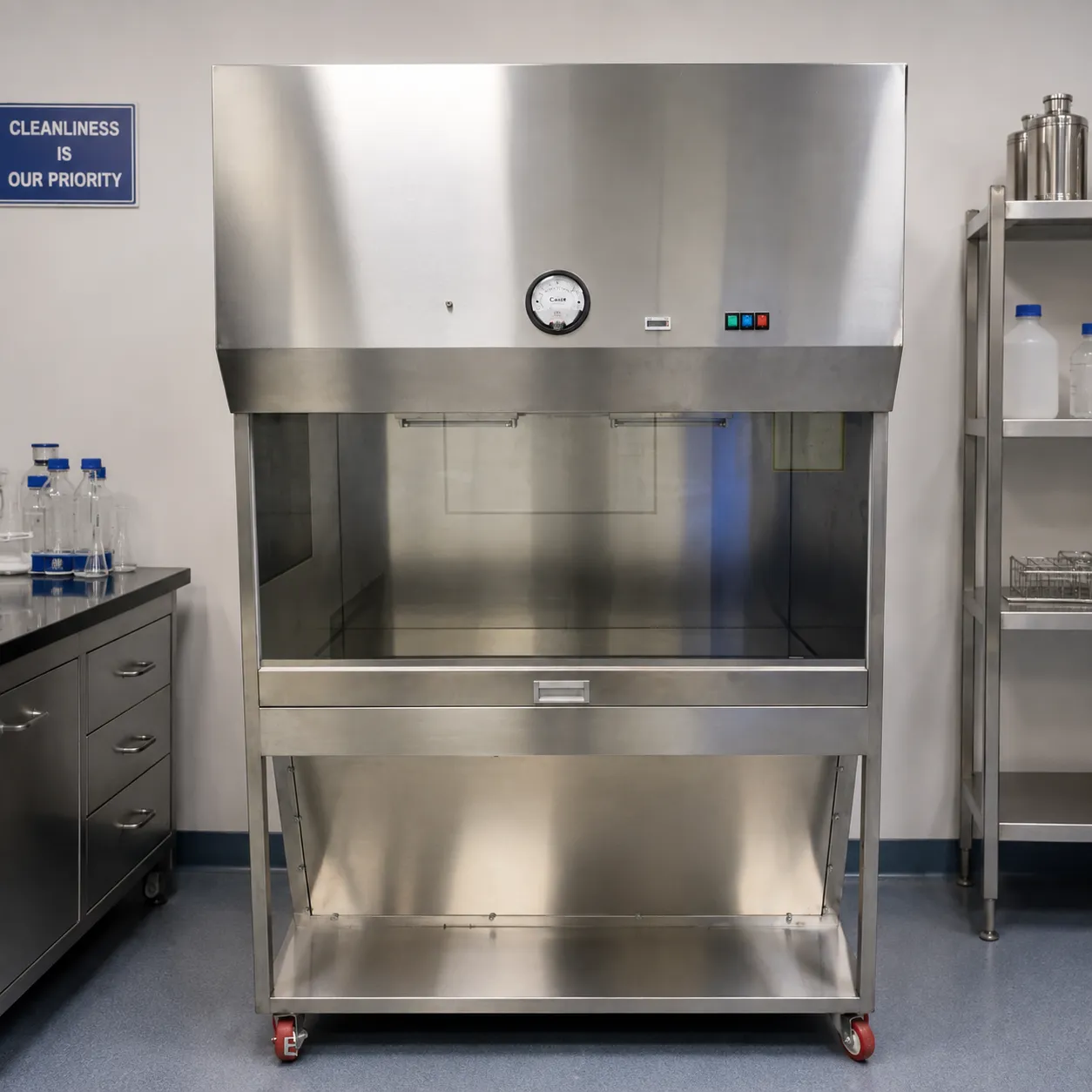

Swastik Engineering’s Bio Safety Cabinets (BSC) deliver dependable operator, product, and environmental protection for microbiology, pharmaceutical preparation, and research workflows. Each unit combines precise airflow control with multi-stage HEPA/ULPA filtration to maintain aseptic conditions and prevent cross-contamination.

Biosafety Cabinets are specialized workstations widely used in clinical, pharmaceutical, life science and industrial laboratories where experiments need highly contaminant free environment. Also known as biological safety cabinets and biohazard safety cabinets, these are made in three different class types such as Class 1, Class 2 and Class 3; in which Class 2 is widely used in microbiology laboratories because it provides protection to both product as well as personal. It is biosafety level factor which decides which bsc should be used in laboratory. These cabinets are considered safer than other clean benches because such BSCs effectively eliminate risks to operator/staff, samples, and the environment from pathogenic biological agents (PBA) and microorganisms responsible for spreading airborne infection.

BIOSAFETY CABINET FEATURES

• Design accordingto GMP-Guideline easy to clean and to disinfect
• Sliding Glass Door
• Cabinet Fabricated in SS 304 / 316 Structure
• Re-Circulated Filtration System
• Gel Seal Type Supply Minipleat HEPA Filter – For Supply and Exhaust 0.3 Micron, H14 Grade with Efficiency 99.999%,
• EU-5 Grade Pre-Filter With SS 304 Flange
• Air velocity : 0.45±0.05 mps (90±20FPM) Below Six Inch of Grill
• Digital Differential Pressure Gauge With High Low Alarm
• EC Series Motor Blower – Supply Blower and Exhaust Blower
• Table with SS Top having approx. 3”D perforation at the front and back.
• Measuring system for diff. pressure & volume flow / air velocity (If Required)
• Pre-Installed LED and UV Germicidal Light
• Switch Socket, Sash Up and Sash Down
• Control System-4.3 Inch HMI with Inbuilt UV Hour Meter
• SS 304 PAO Port, SS 304 Atmospheric Nozzles
• SS 304 Gas Cock
• Sound Level less than 70 db on Scale
• Power Supply 230V ± 10V, 50 Hz, Single Phase
